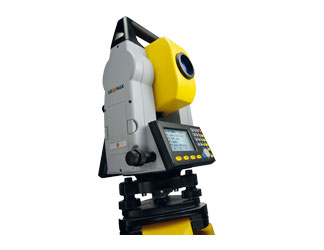

GeoMax Total Station Zipp 10Pro

Brand : GeoMax
Model : Zoom 20
Country : Switzerland

“Work when you do!”.
Efficient. Fast. Reliable.
At GeoMax we understand that you work in demanding environments and require excellent price-to-performance without compromising quality, that’s why we build products that

accXess™ EDM Technology
GeoMax’s accXess EDM Technology delivers outstanding reliability and class leading accuracy with and without a prism in even the most difficult conditions. Reflectorless accXess EDM Technology is available as a2 (250 m) and a4 (400m) on the GeoMax Zoom20 series.

Onboard Software
Easily control your data with the flexible and easy-to-use onboard software. Areas and Volumes, Reference Elements, CoGo and more can be accessed using the large graphic display. Import and Export in the format you want for total control and flexibility.

Laser plummet
With GeoMax’s laser plummet,centring is simple. The bright laser beam is easily visible and eliminates time consuming and error prone procedures required with an optical plummet. You win at every set-up.

Complete system
GeoMax not only provides you with a highly productive instrument, but also with a complete set of accessories to meet your demanding tasks. With everything in one box, GeoMax “Works when you do!”.

Quadruple-axis compensation
With advanced electronic compensators, GeoMax instruments are always level and collimation errors corrected. Quadruple-axis compensation is standard on all GeoMax total stations which means you can be sure of maximum reliability with both horizontal and vertical angles.

Built for all environments
The Zoom20 withstands the toughest environments. With the optional Polar certification the Zoom20 is individually tested at -30° C. With our extensive factory tests, you can be sure that GeoMax “Works when you do!”.

Powerful Li-ion batteries
The GeoMax Li-Ion battery which lasts up to 36 hours is one of the standard accessories that comes with the Zoom20 series. The ability to work with standard accessories reduces your total cost of ownership.

Data transfer
Once you’ve fi nished with your fi eld work, the job is not necessarily complete. GeoMax provides PC software together with the instrument that allows you to transfer data to other instruments and office software packages with ease.

Powerful Applications
At GeoMax we understand that your daily tasks vary greatly, that’s why we’ve created a number of powerful applications to guide you through every day. From setting-up, measuring, staking and checking, you can be certain that GeoMax “Works when you do!”.

The powerful survey App allows you to collect data quickly and accurately. Flexible coding and display formats delivers data the way you want it. Directly export surveys with codes into CAD.

Set-up with Resection
With the simple push of a key, your station coordinates and orientation are calculated and surveying can immediately begin.

Set Out
With accurate and easy-to-use guidance you’ll be quickly complete with one point and moving to the next.

Area (3D) & Volume
The area (3D) and volume app determines the area, volume and perimeter of the plan and slope surfaces at a simple button press.

Remote Elevation
The Remote Height application allows you to easily determine the height of a point when you cannot measure a distance to the point directly. The height of the remote point is automatically computed.

Reference Element
Regardless of whether you’re staking or checking a reference line or arc you’ll be amazed at the fl exibility.

With large graphical displays the staking of your construction site has never been so easy. You’ll complete construction staking easier and faster than ever before.

CoGo Routines
Easily calculate and determine points out in the fi eld with the CoGo App. This powerful App allows you to calculate inverse, intersection, offset and line extension in a few easy steps.

Missing Line Measurement
Determine the distance, grade,azimuth and height differencebetween any two points. Determining ties is a breeze.

Two Prism Offset
Situations arise when you cannot measure a point directly. With Two Prism Offset simply place one end of the rod on the hidden point and measure to both reflectors. The coordinates of the hidden point are automatically computed.

Technical Specification
Angle measurements (Hz, V)
Method Absolute continous
Display Resolution 1”
Standard deviation (ISO 17123-3) 2”, 3”, 5”, 7”
Magnification 30x
Field of View 1° 30’ (26 m / 1 km)
Minimum focus 1.7 m
Reticle 3 level reticle illumination
System Quadruple-axis compensation
Working Range ± 4’
Setting accuracy 0.5”, 1”, 1.5”, 2”
Distance Measurement on Reflector
Measuring range with circular prism 3’500 m
Measuring range with 3 prisms 5’400 m
Measuring with reflective foil
(60 mm x 60 mm) 250 m
(Fine/Quick/Tracking) 2 mm + 2 ppm / 5 mm +2 ppm / 5 mm + 2 ppm
Measuring time (Tracking/Quick/Fine) 0.15 sec / 0.8 sec / 2.4 sec
accXess™ EDM Re ectorless Distance Measurement
accXess4 Range with white target 400 m
accXess2 Range with white target 250 m
Range with circular prism >7’500 m
Accuracy 3 mm + 2 ppm (>500 m 4 mm + 2 ppm)
Measuring time 3.0 – 6.0 sec
Internal memory/storage 10’000 points (incl. measurem., coords & codes)
Interface USB and RS232
Display 160 x 280 pixels, 8 lines x 30 characters
Keys Alphanumeric keys and 4 functions keys
Operating system Windows® Embedded CE operating system
Laser plummet
Type Laser point, brightness adjustable in steps
Accuracy 1.5 mm at 1.5 m instrument height
Environmental conditions
Optional Polar version tested to -30° C
Operating / Storage Temperature -20° C ~ +50° C / -40° C ~ +70° C
Protection to dust and water IP54
Weight including battery and tribrach 5.07 kg
Voltage/Capacity ZBA400 7.4V 3800mAh
Operating period with continous angle measurement 36 hours
Operating period with measurement every 30 seconds 9 hours (>1’000 measurements)
