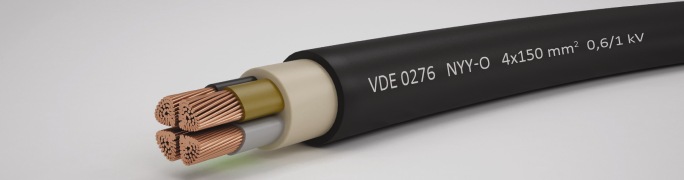

NYY Power and signal cable 0,6/1 kV, PVC insulated and sheathed
Application
Distribution and signal power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
| Conductor: | Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295 | |
| class 1: | solid, round(RE) or sector (SE) | |
| class 2: | multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted | |
| Insulation: | PVC compound DIV-4 acc. to HRN HD 603.1 | |
| Filler: | extruded elastomer or plastomer compound or wrapped thermoplastic tapes | |
| Sheath: | PVC compound DMV-5 acc. to HRN HD 603.1 | |
