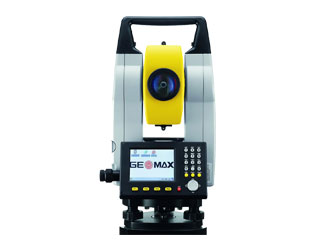

GeoMax Reflectorless Total Station(Zipp-20R-WinCE)

Brand : GeoMax
Model : Zipp-20-Open WinCE
Country : Switzerland

Featuring Geomax FieldGenius, X-Pad, Carlson SurvCE or any localised field software, the Zipp20 allows you to work the way that best fits your needs.

With integrated Bluetooth® and the capability to connect to any tablet or data logger, the Zipp20 provides you highest flexibility.

All this combined in a system offering a colour & touch display, long range non-prism measurement and all your favourite Window®CE that “works when yo do”.

Technical Specification
Angle measurements (Hz, V)
Standard deviation 2”, 5”
Display resolution 1”, 5”, 10”
Distance measurement
Prism 3’000 m / 2mm + 2 ppm
Reflectorless 3 mm + 2 ppm
Foot Print 12 x 24 mm**
Physical specifications
Weight 5.3 kg***
Operating temp -20°C to 50°C
Protection class IP54 dust and waterproof
Humidity 95 %, non-condensing
Keyboard Full alphanumeric, user definable
3.5″ Quarteer-VAG colour touch screen (320 x 240 pixel,)

10 lines x 30 characters, illuminated.

Bluetooth Device Class II
Memory size 2 GB, internal
Interface USB
Removeable memory USB memory stick
Power Supply
Internal battery Removeable Li-Ion 4.4Ah
Operating time 8 hours
Type Visible laser point
Accuracy 1.5 mm at 1.5 m instrument height
Operating system
Windows CE®
