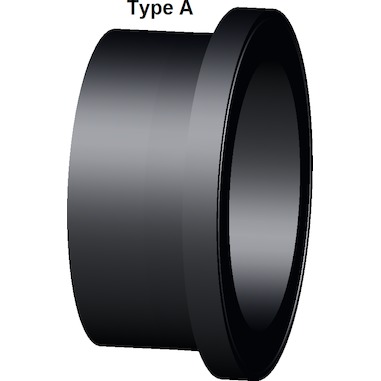

ecoFIT flange adaptor SDR11

ecoFIT all you need in PE. The qualified, corrosion resistance solution for universal usage in highly diverse industrial applications.
Covering all requirements of the most significant international standards proves the systems’ quality and safety. ecoFIT guarantes a maximum of safety, reliability and performance.


  • Material: PE100
  • Conventional butt-welding according to DVS 2207
  • IR compatible
  • Up to d315, suitable for butterfly valve type 567/578. Above use ecoFIT adaptor for butterfly valves SDR11 (d355-d800)
  • Gasket d20-d630: Profile flange gasket NBR No. 45 44 07, EPDM No. 48 44 07
  • Gasket d710-d1000: flat gasket EPDM No. 48 40 03
  • * Not suitable for butterfly valves
